Screw gate valve
This device is applied to the cleanout door of dust-collecting chamber such as dust collector etc. It controls and stops the output of media. Typically, it is manually operated and used together with electric air lock.

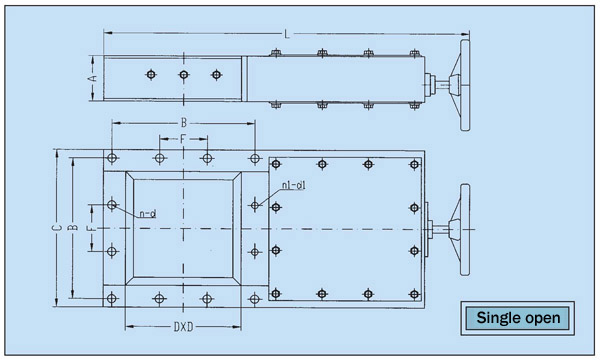

Dimension Table：
Code Specification
L
A
C
D
F
B
n-d
n1-d1
250X250
815
100
380
250
82.5
330
13-ф18
3-M16
300X300
920
140
420
300
200
360
6-ф18
2-M16
400X400
1120
140
520
400
280
480
13-ф18
3-M16
500X500
1326
160
630
500
116
580
14-ф18
6-M16
