wear-resistant ceramic rotary equalizer valve
(Warning: The products are proprietary and patented, and unauthorized reproduction will be prosecuted，Patent No：ZL200620074565.5)
(Our company has passed ISO9001：2000.)

PG双闸气锁耐磨陶瓷阀AB型

　　

　　The valves are mainly used for opening and closing of charging and discharging of gas and slag in dry ash system of power plant, and also applicable for opening and closing of such media as wear and corrosion-resistant fine dust, water, oil and vapor at tube edge in the industries of mining, paper-making and petrochemical etc. PG double-disc air-lock wear-resistant ceramic valve has the advantages of good sealing property, high temperature resistance, strong wearability, easy starting, no ash deposit and long service life.

The body of KR double-disc air-lock wear-resistant ceramic valve is combined with cast steel, cast iron and wear-resistant ceramics.
Service temperature ≤250℃
The nominal pressure of actuator is 0.4～0.6Mpa and the nominal pressure of valve is 1Mpa
customizable according to user’s requirements

　　Installation instructions rtootary balance valve：
　　 Welcome to select the patented products of our company. In order to prolong service life and improve operating efficiency, this valve should be installed as vertical as possible, and if the conditions do not allow the installation should be carried out in 45°. For upside-down or horizontal installation, the idle conveying time must be extended so as to avoid ash accumulation in valve. In this valve the return signal adopts imported inductive magnetic switch two-wire system, and the signal line can adapt to both DC and AC via load. “Refer to the figure for installation of signal line”

　　Operating instructions
　　 1、Before installation this instruction should be carefully read, and type, full bore and technical parameters of the valve be checked.
　　 2、 After installation of valve welding flange is forbidden to prevent from damaging the seal ring of valve. The installation distance for valve reserved in pipelines shall be appropriate, and gaskets shall be added on both sides of flange.
　　 3、The centers of two pipelines shall be remained coaxial with the center of valve full bore, and two sides of flange shall be smooth so as to guarantee clamping and normal operation of valve.

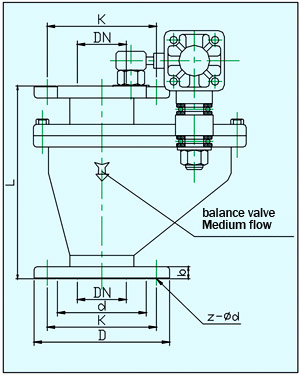

Table of physical dimension and coupling dimension of wear-resistant ceramic rotary equalizer valve, and model of matched actuator

Sizemm	coupling dimension	physical dimension and matched actuator(mm)
DN	D	D1	b	Z-d	L	H	FQGA
50	160	125	15	4-Ф18	200	464	80﹡65
65	180	145	15	4-Ф18	220	516	80﹡80
80	195	160	16	8-Ф18	250	632	100﹡95
