| KD、KC-type powder materials
dischargers from bottom and side of storehouse |
These
dischargers are used to discharge powder materials from bottom and
side of storehouse. The dischargers are equipped with fluidifying
device, which can discharge materials in fluidization state, materials
are then charged directly via conveying pipe or chute by coordinating
bulk loader. This series adopts pneumatic and manual control modes,
the former uses an electromagnetic valve to control fore and aft
motion of cylinder so to realize opening and closing of discharging
valve; and the latter opens and closes valve by rotating handwheel.
 |
Main technical parameters
：
parameters /model |
KC100 |
KC150 |
KD100 |
KD150 |
Diameter
of discharge port mm |
100 |
150 |
100 |
150 |
Discharge capacityt/h |
30-60 |
50-100 |
60-120 |
60-120 |
Air consumption(m3
Air/tMaterial) |
0.8-1.2
Cement |
Working pressure of
air cylinder(Mpa) |
0.24-0.58 |
working pressure of
aeration tank(Mpa) |
0.1-0.2 |
Air pressure of aeration
bar |
0.1-0.2 |
|

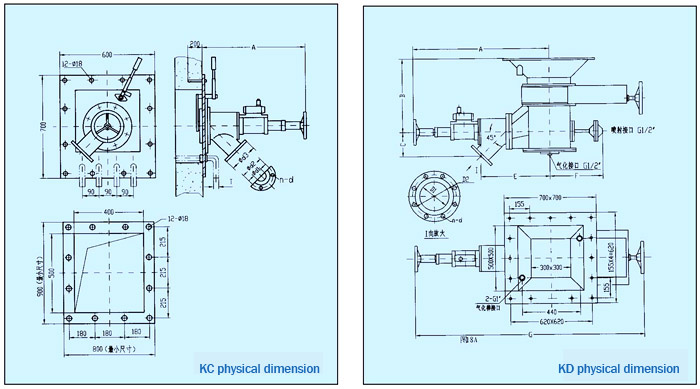

physical dimension Table：
model/code |
d1 |
d2 |
d3 |
n-d |
A |
T |
KC100 |
100 |
180 |
220 |
4-Ф18 |
765 |
G3/4" |
KC150 |
150 |
230 |
280 |
8-Ф18 |
955 |
G1" |
|
| physical dimension Table：
|
code |
A |
B |
C |
G |
E |
F |
D1 |
D2 |
n-d |
KC100 |
1030 |
539 |
190 |
1553 |
510 |
450 |
170 |
100 |
4-Ф18 |
KC150 |
1230 |
554 |
260 |
1829 |
595 |
450 |
225 |
150 |
8-Ф18 |
|
| |
